Pneumatic Ball Valve with Tri Clamp Connection Fireproof and Long Life Span for Industrial Usage

Also known as non-retention ball valves, these feature a horizontal actuator. The uniquely designed valve body prevents medium retention after flow, making them ideal for pharmaceutical and biotechnology industries.

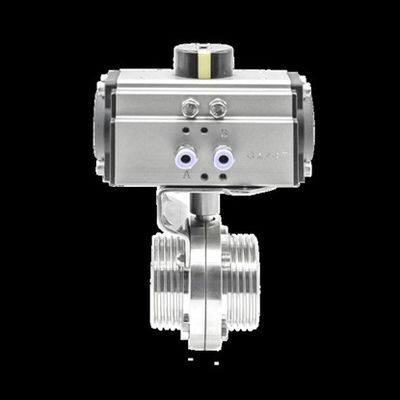

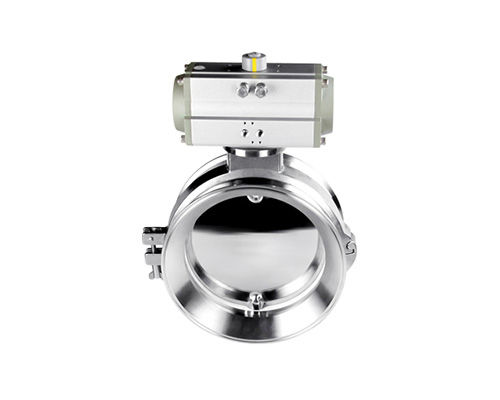

Veson heavy duty sanitary pneumatic butterfly valves provide excellent on-off service and flow control solutions using air pressure actuation.

• Stainless steel SS304 valve & body
• Fireproof construction
• Long life span
• Maintenance-free pneumatic mechanism
• Fast operation: less than 1 second at 80 PSI
• Tested at over 100,000 cycles
• Visual position indicator
• Available in air/air configuration
• Suitable for normal and closed applications

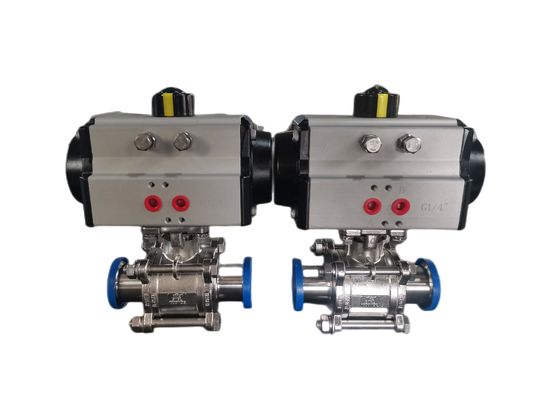

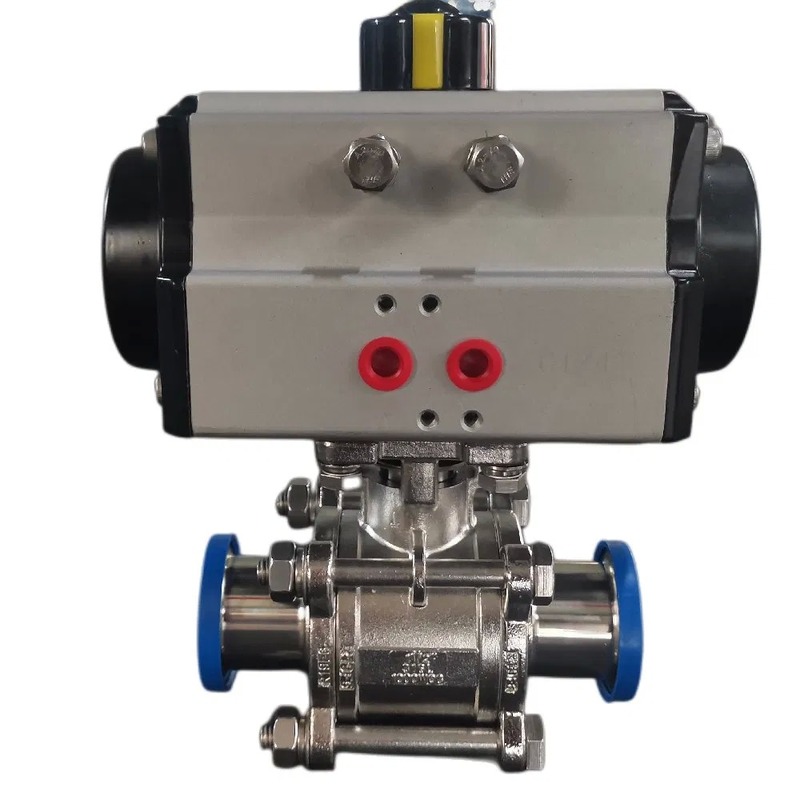

Veson heavy duty pneumatic ball valves offer superior on-off service and flow control using air pressure actuation.

• Precision 2-way pneumatic encapsulated ball valve
• Encapsulated PTFE seats with Tri Clamp connection
• In-line design for maximum flow capacity
• Flexible installation in any position
• SS316 stainless steel ball
• PTFE gasket compliant with FDA 177.2600
• Full port design
• Rated to 1,000 PSI WOG
• Completely rebuildable
• 60-90 PSI operating range
